StreamXpress Player Software

StreamXpress

Stream Player for R&D, Testing, Demos

Feature-rich stream player software with support for all DekTec output adapters:
ASI, RF, SDI and IP: SMPTE 2022 (TS-over-IP, Video-over-IP), SMPTE 2110, and SRT.

Key Characteristics

Stream types	Transport stream SD/HD/3G-SDI I/Q samples TMCC file (for ISDB-T) T2-MI file (for DVB-T2)
Features	(P)SI viewer Automatic rate computation PCR correction Endless play in loop Test signal generator Error injection Remote control
Modulator Features	ISDB-T multiplexer Channel-based tuning DVB-T2 parameter sets Integrated channel simulator

Supported DekTec Adapters

DVB-ASI	DTA-2144B, 2160 DTA-2172, 2174B, 2175 DTA-2178, 2178-ASI DTE-3100, DTU-245
SDI	DTA-2172, 2174B, 2175 DTA-2178, 2179, 2195
Modulators	DTA-2107, 2111B, DTA-2115B, 2116 DTU-315
TS over IP	DTA-2160, 2162 PC network port (local NIC)
SMPTE 2110	DTA-2110
I/Q Samples	DTA-2115B, 2116 DTU-315

Old Adapters Still Supported

DVB-ASI	DTA-100, 105, 112, 115 DTA-116, 117, 145, 160 DTA-2136, 2137C, 2142 DTA-2145, 2152, 2154 DTA-2174, DTU-205
DVB-SPI	DTA-2142
SDI	DTA-2152, 2154, 2174
Modulators	DTA-107, 111, 112, 115 DTA-116, 117 DTU-215
TS over IP	DTA-160 PC network port (local NIC)

PC Requirements

OS	Windows 7, 8, 10, 11 Win Server 12, 16, 19, 22 From June 2023, driver updates for Windows 7, 8, and Server 2012 will no longer be provided. Application installers will include June 2023 drivers as the final versions for these editions.
Processor	Core i5 minimum Core i7 recommended Or equivalent AMD CPUs
Disk Drive	For streams with a high bitrate (SDI, I/Q samples), carefully select a disk sub-system that can sustain the required bitrate

Documentation

StreamXpress Leaflet

StreamXpress Manual

StreamXpress Installation

SpRcApi - Remote control API

Downloads

StreamXpress
Install Package

StreamXpress
Remote Control API
for Windows

StreamXpress
Remote Control API
for Linux

Pricing

DTC-300-SP	€	160
StreamXpress - DekTec stream player, for use with a DekTec output adapter.

DTC-300-NICP	€	281
StreamXpress license on a DekTec adapter for playout of TS-over-IP streams via the network port of your PC or laptop. Please note that this license specifically activates network port usage. In addition, the DTC-300-SP is also required to use StreamXpress with the DekTec Adapter.

DTDONG-1-NICP	€	373
Dongle with StreamXpress for local NIC

DTC-302-RC	€	374
Remote control API for StreamXpress.

DTC-305-CM	€	1.196
XpressSim - Channel-simulation option with white noise (AWGN) simulator and multi-path echo insertion for StreamXpress.

Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.

Features

Low-cost, high-performance playout software that supports all DekTec output adapters.
Endless play with optional automatic correction of continuity-counter, PCR/PTS/DTS and TDT/TOT fields.
Easy-to-use control of modulation and channel simulation parameters.

Applications

Universal test-stream generator for feeding set-top boxes, digital TVs, digital-video processing equipment, etc.
Demos at trade shows, in stores, etc.
Test-signal generator for ATE environments.

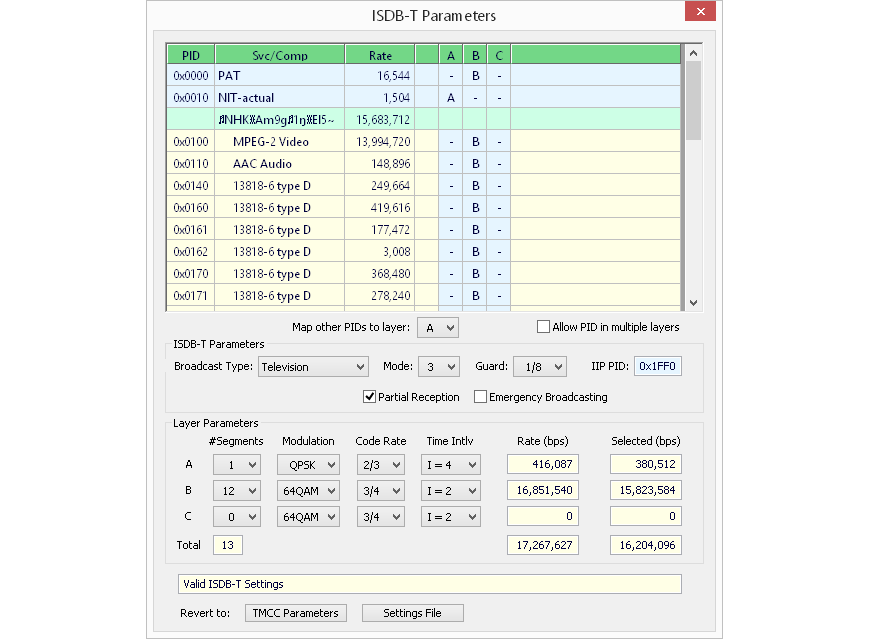

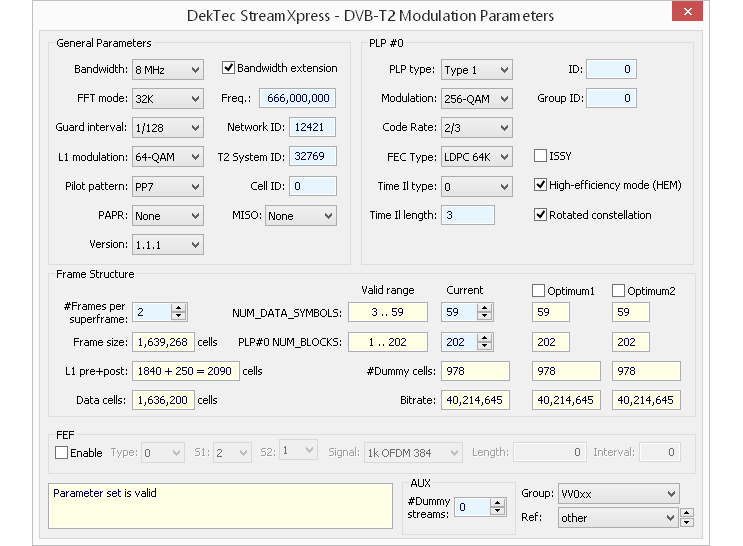

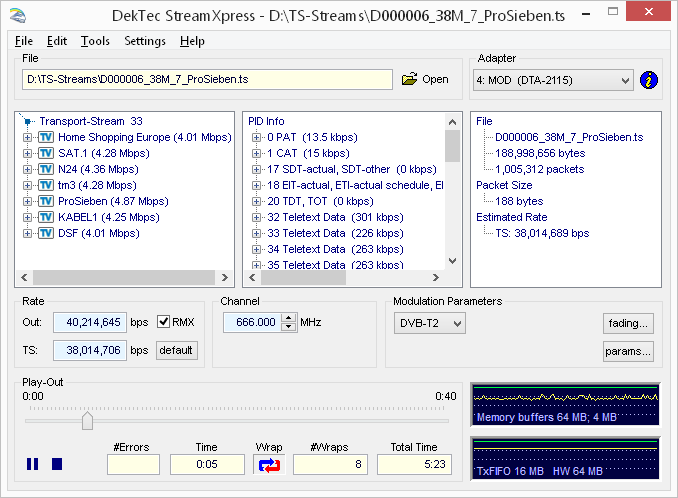

Screenshots
