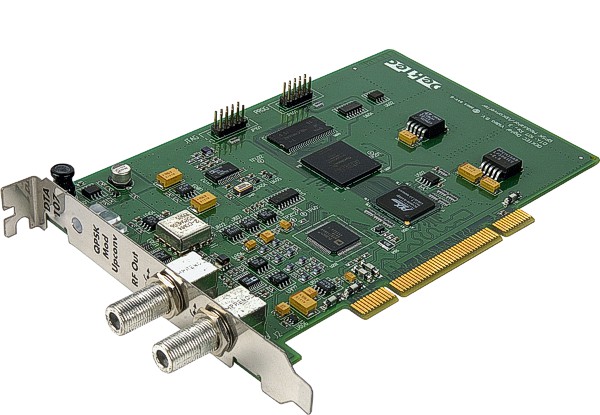

DTA-107 Satellite Modulator for PCI DekTec's first and extremely succesfull modulator card. At release, the DTA-107 supported DVB-S, while in a later stage support for DVB-S2 was added.
|
Key Characteristics
| RF frequency | 950 to 2150MHz (L band) |
| Symbol rate | 0.088 to 45MBd |
| RF output level | -47 to -27dBm |
Inputs and Outputs
| 2x RF output | 75-Ω F-type female |
| Slot | PCI |
Modulation Standards
| Base | DVB-S |
| Options | DVB-S2, ISDB-S |
| More options | AWGN insertion |
PC Support
| OS | Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
Software
| StreamXpress | Play TS files and control modulation parameters |
| XpressSim | Channel simulator (option for StreamXpress) |
| SpRcApi | StreamXpress remote control API for automated playout and modulation |
| DekTec SDKs | Create your own full-custom application with modulated output via the DTA-107 |
Documentation
Application Notes
Pricing
| DTA-107-SP | € | 1.891 | No stock |
| Satellite modulator for PCI with StreamXpress player software. | |||
| DTA-107-S2-SP | € | 2.411 | No stock |
| Satellite modulator for PCI with DVB-S2 modulation and StreamXpress player software. | |||
| Modulation Options |
| The base version of the DTA-107 supports the modulation standards listed under "Modulation standards" at the top of this page. Please refer to the Modulation Options page for all available options. |
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- A satellite test modulator with integrated L-band upconverter, on-board channel coder with RS encoder, convolutional interleaver, base-band shaping filter and programmable output level (requires DTC-305-CM license).
- Support for AWGN insertion option and programmable convolutional rates: 1/2, 2/3, 3/4, 4/5, 5/6, 6/7 or 7/8.
- Support for DVB-S2 and ISDB-S (require extra licenses).
Applications
- The multi-purpose satellite television RF signal generator for use in your R&D lab, for developing and qualifying satellite equipment or for experimentation with RF modulation schemes.
- Create your own satellite RF-generating applications using the free SDK.
- In combination with MuxXpert you can real-time multiplex streams and generate a full DVB-S or DVB-S2 signal.
Block Diagram
