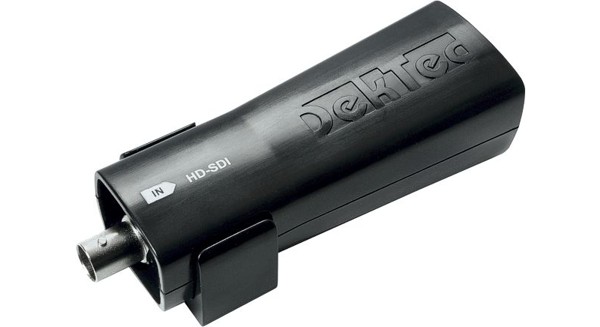

DTU-351

HD-SDI Input for USB-3

An attractively-priced USB-3 device for getting HD-SDI signals into a laptop or PC, with access to all video lines, 16 audio channels and HANC/VANC packets.
The unit is bus-powered, so no power supply is required.

Key Characteristics

Input standard	HD-SDI: SMPTE 292M SD-SDI: SMPTE 259M
Features	Audio/video/ANC extraction Hardware scaling: ¼, 1/16

Inputs and Outputs

HD-SDI in	75-Ω BNC
USB	USB 3.2 Gen 1, type B Also called SuperSpeed USB
Power	USB powered No separate power supply required

PC Support

PC USB port

USB 3.2 Gen 1 required

Also called USB 3.0 or 3.1 Gen 1

DTU-351 will not work with USB 2

Windows 10, 11
Windows Server 16, 19, 22
Linux ≥2.6.18, 3.x, 4.x, 5.x

Processor

Core i5 minimum
Core i7 recommended

Or equivalent AMD CPUs

Software

SdEye	SDI analyzer for detailed inspection of audio, video and ancillary data
VF-REC	SDI/TS recorder with looping, scheduling and more
DekTec SDKs	Create your own application

Documentation

DTU-351
Leaflet

Application Notes

DT-AN-351-1 System Requirements

Pricing

DTU-351-SY	€	1.170	Stock: 25+
HD-SDI input for USB-3 with SdEye for real-time and offline analysis of SDI signals.

DTU-351-VR	€	1.227	Stock: 25+
HD-SDI input for USB-3 with VF-REC recording software.

DTU-351-VR-SY	€	2.049	Stock: 25+
HD-SDI input for USB-3 with VF-REC recording software and SdEye for real-time and offline analysis of SDI signals.

OEM	On request
For OEM development, we can supply the bare PCB and offer special volume pricing. Please contact us to discuss your requirement.

Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.

Features

General-purpose HD-SDI input for USB-3.
All 10-bit data words from the full HD-SDI frame are read and available to the user.
Supported by DekTec Matrix API 2.0 to automatically extract audio, video, HANC and/or VANC.

Applications

HD-SDI waveform analysis and recording.
Input for DirectShow-enabled applications that process uncompressed video.
Generic HD-SDI input for your application, e.g. encoder, ancillary-data extractor, etc.
