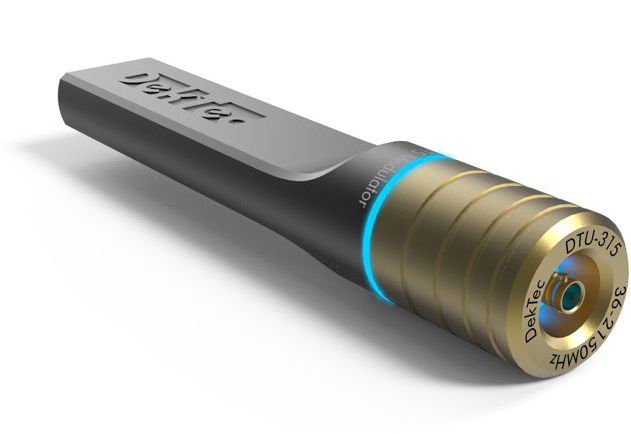

DTU-315 All-Standard 0-2GHz Modulator for USB-3 Modulation has never been so easy and so beautiful. The DTU-315 is a portable modulator for satellite, terrestrial and cable, all in a single device.
|
Key Characteristics
| RF frequency | VHF, UHF, L band 36 to 2150MHz |
| Mod. bandwidth | Up to 70MHz |
| RF output level | -45 to -25dBm |
Inputs and Outputs
| RF out | 75-Ω micro-BNC female |
| USB | USB 3.2 Gen 1, micro-B Also called SuperSpeed USB |
| Power | USB powered No separate power supply required |
Modulation Standards
| Standards included with base product | ATSC 8VSB DVB-C DVB-CID DVB-S, DVB-S2 DVB-T, DVB-T2 single PLP QAM-B, QAM-C |
| Options | ATSC-M/H ATSC 3.0 CMMB DAB(+), DRM(+), T-DMB DTMB (ADTB-T, DMB-T/H) DVB-C2 DVB-S2X DVB-T2 multi PLP ISDB-S, ISDB-S3 ISDB-T, ISDB-Tmm |
| More options | I/Q sample playout AWGN insertion Multipath echo simulation Remotely controlled playout |
| GOLD option | All options in this table, plus all future modulation options developed for the DTU-315 |
PC Support
| PC USB port | USB 3.2 Gen 1 required Also called USB 3.0 or 3.1 Gen 1 DTU-315 will not work with USB 2 |
| OS | Windows 7 minimum Windows 10 recommended Linux ≥2.6.31, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
Software
| StreamXpress | Play TS files and control modulation parameters |
| XpressSim | Channel simulator (StreamXpress option) |
| T2Xpress | DVB-T2 signal generator, full control of modulation parameters and integrated channel simulator |
| C2Xpress | DVB-C2 signal generator, full control of modulation parameters and integrated channel simulator |
| TmmXpress | ISDB-Tmm signal generator, full control of modulation parameters and integrated channel simulator |
| SpRcApi | StreamXpress remote control API for automated playout and modulation |
| DekTec SDKs | Create your own full-custom application with modulated output via the DTU-315 |
Documentation
Pricing
| DTU-315-SP | € | 3.059 | Stock: 25+ |
| All-standard 0-2GHz modulator for USB-3 with StreamXpress player software. | |||
| DTU-315-GOLD | € | 6.246 | Stock: 25+ |
| All-standard all-band modulator for USB-3 with all current and future modulation options, channel simulation and StreamXpress including remote control. | |||
| DTR-315-RACK | € | 509 | |
| 1U-height 19-inch rackmount kit for holding up to eight DTU-315 units. | |||
| Modulation Options |
| The base version of the DTU-315 supports the modulation standards listed under "Modulation standards" at the top of this page. Please refer to the Modulation Options page for all available options. |
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- Supports all constellations and modulation modes for each supported standard.
- Excellent signal quality through direct digital synthesis of the RF output signal.
- No power supply required: A single USB-3 connection supplies power, real-time data and control.
Applications
- General-purpose test modulator in your R&D lab for developing, qualifying or repairing any equipment with an antenna input.
- Portable demo set for TV receivers, easy to carry to customer demos, trade shows, etc.
- TV distribution using modulated signals in shops, hotels, hospitals etc.
Block Diagram
The DTU-315 reads data from USB and forwards it to a baseband modulator, a channel filter, an optional channel simulator and an upconverter. The digital RF signal is converted to analog with a high-speed D-to-A converter and output on a micro-BNC connector.
Key Features of the DTU-315 Explained
The presentation below explains key features and benefits of the DTU-315.
DTU-315 in Action

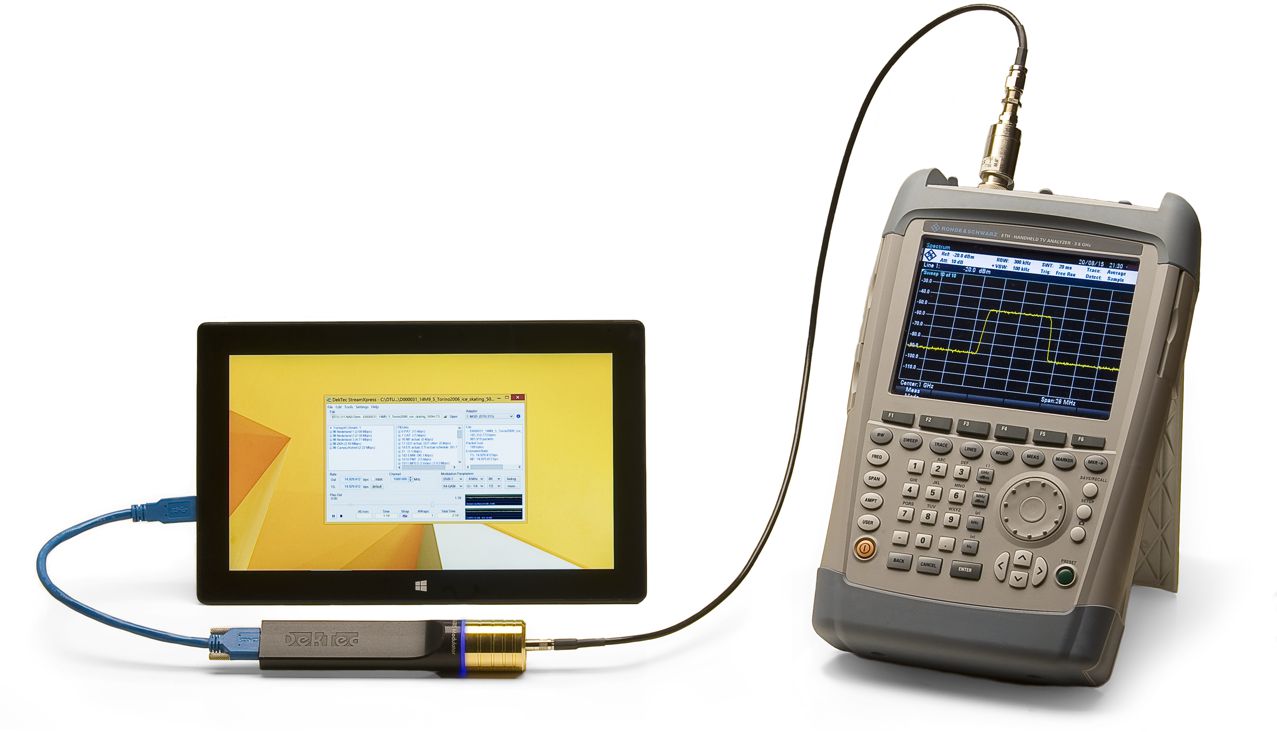

A tablet drives the DTU-315. The RF output signal is shown on a spectrum analyzer.
Accessories

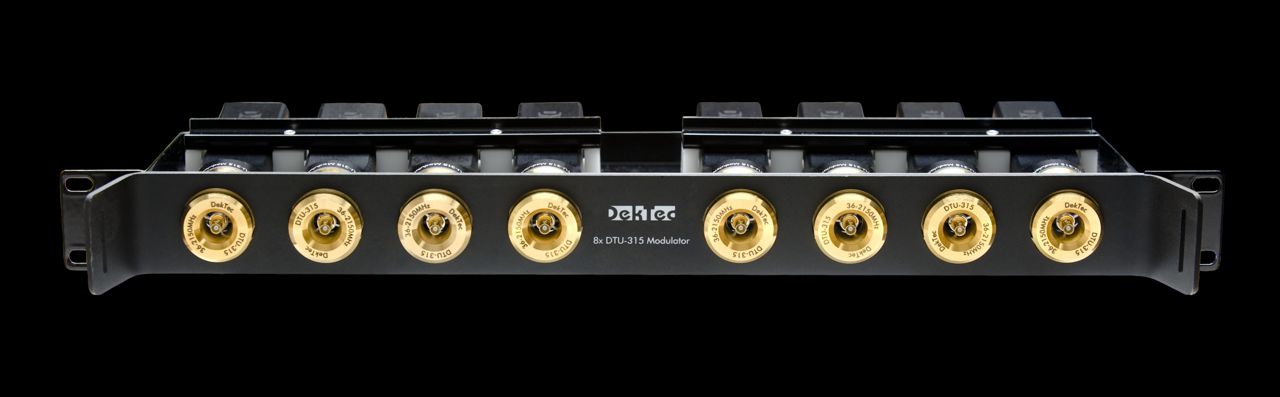

A rackmount kit (DTR-315-RACK) is available to install up to eight DTU-315 units in a 19" rack.
Related Products
 |
DTA-2115B – All-Standard VHF/UHF/L-Band Modulator for PCIe DekTec's highest-end modulator. The DTA-2115B and DTU-315 share the same set of modulation standards, the same frequency range and an all-digital modulation and upconversion architecture. Differences: The DTA-2115B has a higher output level (0dBm vs. -25dBm) and a better phase noise figure. The DTU-315, being USB based, can be used with laptops and is easier to install for desktops and servers. |
