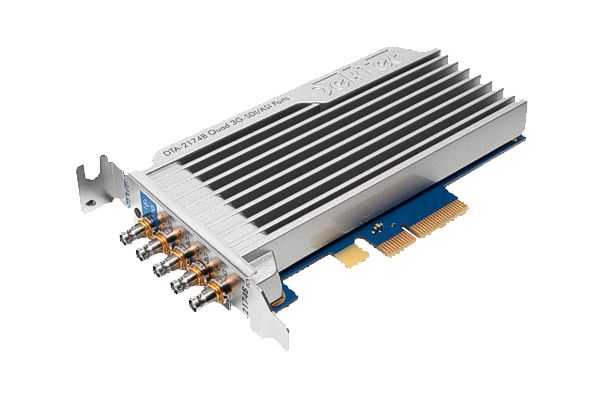

DTA-2174B Quad 3G-SDI/ASI Ports (1x12G) for PCIe The industry workhorse for interfacing uncompressed video to PCs, attractively priced. Perfect for 4K encoders/decoders thanks to 12G and quad-link 3G support. The card can be configured for a variety of other SDI/ASI-processing applications.
|
Key Characteristics
| Ports |
4x 3G-SDI/ASI input/output 1x Genlock input
Port 1 supports full 12G-SDI for 4K. |
| Features |
10-bit full-frame access Low latency A/V, ANC extraction/insertion Scaling: 1/4, 1/16 |
| API |
DekTec Matrix API® 2.0
The Matrix API, part of DTAPI, is a high-performance API for writing real-time SDI applications with ease. |
Writing Your Own Application
As part of the DekTec-for-Developers range, the DTA-2174B is ideally suited for creating custom real-time SDI input/output applications on both Linux or Windows.
For OEMs, attractive pricing is available. Please contact DekTec to discuss your options.
Live Video Production
| DTA-2174B-LIVEPRO | € | 675 | Stock: 25+ |
| A dedicated version of the DTA-2174B, designed specifically for professional SDI input and output in DirectShow-based applications such as vMix, OBS, VLC, and Wirecast. | |||
Standards
| SDI support |
12G, 6G, 3G, HD, SD 4K multi-link |
| Video formats |
2160p, 1080p, 1080psf 1080i, 720p, 525i, 625i All common formats supported |
| DVB-ASI | 0 to 214Mbps |
Hardware
| Connectors | 5x 75-Ω micro BNC |
| Cable length |
ASI/SD-SDI - 350m HD-SDI - 200m 3G-SDI - 150m 6G-SDI - 55m 12G-SDI - 50m |
| PCI Express |
Low-profile PCIe Gen3 x4
For PCIe Gen4/5 compatibility, refer to the DLFE feature page . |
PC Support
| OS | Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
| Airflow | ≥2m/s (400LFM) |
DekTec Software
| StreamXpress | Plays files over ASI or SDI, and generates test signals. |
| SpRcApi | StreamXpress remote-control API for automated playout |
| StreamXpert | Our industry-standard transport-stream analyzer |
| SdEye | SDI analyzer for detailed inspection of audio, video and ancillary data |
| VF-REC | SDI/TS recorder with looping, scheduling and more |
| DekTec SDKs | Create your own application |
Declarations of Conformity
Firmware
The DTA-2174B is controlled by firmware that is located in on-board flash memory. You can upgrade or downgrade the firmware in the field.
Please refer to the DTA-2174B firmware page to view available firmware versions, and how to upgrade or downgrade to a specific firmware version.
Pricing
The DTA-2174B is part of the DekTec-for-Developers range. Attractive OEM arrangements are available, please contact DekTec to discuss your options.
| DTA-2174B | € | 827 | Stock: 25+ |
| Quad 3G-SDI/ASI ports (1x12G) for PCIe. | |||
The DTA-2174B comes with a full-height PCIe bracket mounted and a low-profile bracket in the box (except for OEM sales). Use DTA-2174B-LP to order a DTA-2174B with low-profile bracket mounted.
| DTA-2174B-SLP | € | 1.067 | Stock: 25+ |
| Quad 3G-SDI/ASI ports (1x12G) for PCIe with StreamXpert Lite and StreamXpress player software. | |||
| DTA-2174B-SXP | € | 2.193 | Stock: 25+ |
| Quad 3G-SDI/ASI ports (1x12G) for PCIe with StreamXpert analyzer and StreamXpress player software. | |||
| DTA-2174B-SY-SXP | € | 3.015 | Stock: 25+ |
| Quad 3G-SDI/ASI ports (1x12G) for PCIe with SdEye and StreamXpert analyzer and StreamXpress player software. | |||
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Accessories
| DTB-UBNC-BNC | € | 26 | |
| BNC to micro-BNC conversion cable (25cm). | |||
| TLG-117 | € | 130 | |
| Micro-BNC circular nut driver. Tool for loosening and tightening micro-BNC nuts for swapping PCIe brackets. | |||
If the total order amount is less than EUR 200, shipping/handling costs of EUR 25 will be charged.
Features
- Ports can be fully configured from software as a) 4x independent 3G-SDI/ASI, b) 1x 12G-SDI with ASI/SDI side channel, or c) quad-link 4K.
- External synchronization of SDI outputs with analogue genlock port that accepts bi- and tri-level sync signals.
- The smart architecture of the DTA-2174B enables a cost-effective hardware design, unrivaled by other cards in the market.
Applications
- Software-based 4K decoder and/or encoder with 12G-SDI or quad-link 3G-SDI interfacing.
- 4K decoder with 12G-SDI and downscaled triply-buffered HD/3G-SDI monitoring output.
-
Multi-port SDI and/or ASI applications, e.g.:
- Live production mixers;
- Transport-stream multiplexers;
- SDI multi viewers;
- Multi-channel transcoding to/from IP.
Block Diagram
The DTA-2174B features four send/receive channels consisting of cable equalizer/driver, Matrix API logic and high-performance DMA controller. Some typical configurations are shown below.
Please refer to the Firmware Variants application note (see "Documentation pane on the left) for an in-depth description of the various configuration options.
Four independent 3G-SDI/ASI channels
Each channel can be configured (i) as input or output, and (ii) as ASI or SDI (SD, HD or 3G).
Quad-link 4K input or output
In these configurations a single 4K stream is sent to or received from the software. The firmware converts the 4K signal to/from a SMPTE 425-5 quad-link signal.
12G-SDI with ASI/SDI side channel
A main 12G-SDI input or output channel with a "side channel" that can be used independently for e.g. downscaled SDI output (up to 3G-SDI), or an ASI input or output. If the side channel is an output, it can be triply-buffered on ports 2, 3 and 4.
DekTec Matrix API® 2.0
The Matrix-API framework decodes incoming SDI data into pixels (in a programmable format), audio samples and ANC data structures. When a new frame has been received, the framework calls a user-supplied "frame-processor callback" for processing of the data. The user callback can create output video, audio and ANC data, which is encoded by the framework into SDI frames.
Synchronization of multiple input streams is straightforward: The video/audio/anc data of all SDI frames supplied to the callback function have the same arrival time by definition. Past frames can be accessed by an integer frame index. The framework ensures that if frames from different input ports have the same frame index, they have entered the system at the same time instance.
Related Products
DekTec Matrix API® 2.0 supports the DTA-2174B and all products listed below. Applications designed for one of these cards will run virtually unaltered on any of the other cards.
 |
DTA-2172 – Dual 3G-SDI/ASI Ports for PCIe For applications that require two ports. No support for 12G-SDI. |
 |
DTA-2175 – HD-SDI/ASI in+out with relay for PCIe Single HD-SDI/ASI input+output card with failover relay for creating redundant configurations. |
 |
DTA-2178 – Octal 12G-SDI/ASI Ports for PCIe Two times the DTA-2174B on a single low-profile PCIe card. On top of that, each port supports 12G-SDI input, with 4K to 2K scaling. |
 |
DTB-UBNC-BNC – BNC To Micro-BNC Conversion Cable (25cm)
Short conversion cable for connecting cables with regular BNC connectors to the
micro-BNC connectors of the DTA-2178. |
 |
TLG-117 – Micro-BNC Circular Nut Driver Handy tool for loosening and tightening micro-BNC nuts as required for swapping full-height and low-profile PCIe brackets. |

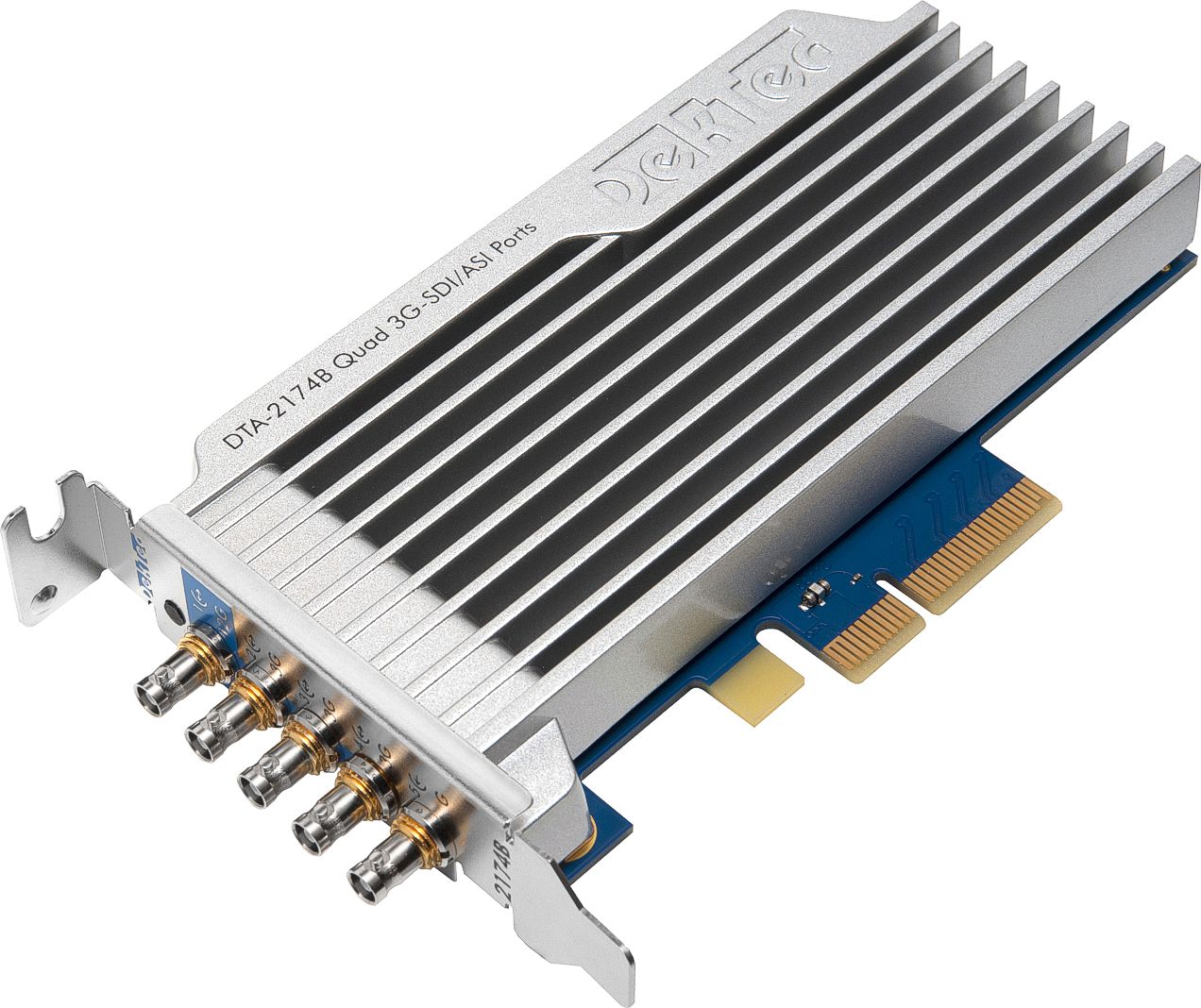

DTA-2174B Bird's Eye View
