DTA-2136

Dual QAM-A/B/C Receiver for PCIe

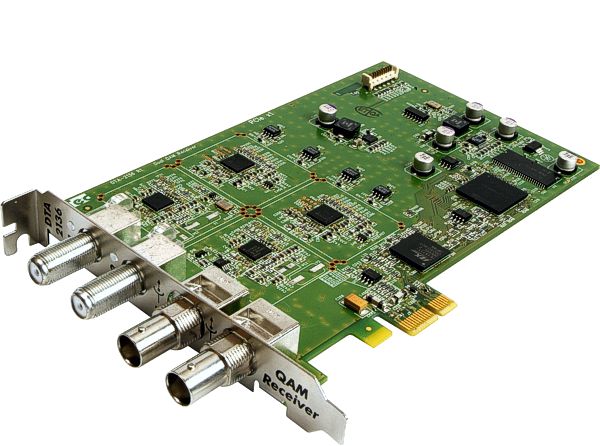

DekTec's PCIe QAM-receiver card for J.83 Annex A, B and C. The DTA-2136 has two onboard demodulators, combined with two ASI output ports for monitoring the receiver output or for independent stream playback.

DTA-2136 Product
Discontinuance Notice

The DTA-2136 is an obsolete product that is no longer in production. It is still supported and available in limited quantities, but for new designs DekTec recommends the DTA-2131 (single-channel cable/terrestrial receiver for PCIe) or the DTA-2139C (twelve-channel cable/terrestrial receiver for PCIe).

Key Characteristics

RF frequency	VHF, UHF 54 to 1002MHz
Sup. bandwidth	8 MHz
Input Sensitivity	-60 to -30dBm
Input return loss	>10dB
MER	12 to 38dB

Inputs and Outputs

2x RF in	75-Ω F female
2x ASI out	75-Ω BNC
PCI Express	PCIe x1

Modulation Standards

Included with base product

DVB-C
QAM-B
QAM-C

PC Support

OS	Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x
Processor	Core i5 minimum Core i7 recommended Or equivalent AMD CPUs
Note	The DTA-2136 may be vulnerable to a BIOS issue in certain Intel motherboard chip sets.

Software

StreamXpress	Play TS files over the ASI-output ports
StreamXpert	Analyze your received transport streams using our analyzer software
VF-REC	Advanced Transport-Stream/SDI Recorder
DekTec SDKs	Create your own full-custom application based on the input of the DTA-2136

Documentation

DTA-2136
Leaflet

Pricing

DTA-2136-SLP	€	1.322	Stock: 25+
Dual QAM-A/B/C receiver for PCIe with StreamXpert Lite and StreamXpress player software.

DTA-2136-VR-SLP	€	2.201	Stock: 25+
Dual QAM-A/B/C receiver for PCIe with VF-REC stream recorder and StreamXpert Lite and StreamXpress player software.

DTA-2136-SXP	€	2.448	Stock: 25+
Dual QAM-A/B/C receiver for PCIe with StreamXpert analyzer and StreamXpress player software.

Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.

Features

Dual-channel QAM-receiver, fully compliant with J.83 Annex A (DVB-C), B and C.
Each channel provides reception status, RF level, demodulation status, constellation, MER, pre-RS BER and of course, the complete Transport Stream.
With the two independent ASI-ports you can either monitor the incoming signal or playback a local file-based Transport Stream.

Applications

Network monitoring of DVB-C, QAM-A, B or C signals.
A professional cable receiver, that can be used in your custom application, by use of our easy DTAPI.
