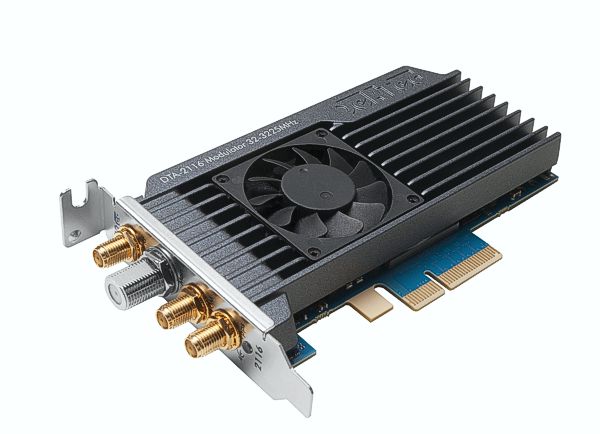

DTA-2116 All-Standard 0-3GHz Modulator for PCIe Experience DekTec's cutting-edge, all-digital modulator, generating a wide range of cable, satellite or terrestrial standards, or even your own software-defined RF signal. Ideal for digital TV testing, SFN deployment, GPS/GNSS emulation, and beyond.
|
Key Characteristics
| RF frequency | 32 to 3225MHz |
| Mod. bandwidth | Up to 100MHz |
| RF output level |
-90 to -5dBm (32-1000MHz) -90 to -12dBm (1000-3225MHz) |
| MER | 50dB (typical, equalized) |
| Phase noise | <-112dBc @ 10kHz |
| PCIe Label | Low-profile PCIe Gen3 x4 |
Inputs and Outputs
| RF output |
|
||||
| Clock sync |
|
Modulation Standards
| Included with base product |
ATSC 1.0 DVB-C DVB-CID DVB-S, DVB-S2 DVB-T, DVB-T2 single PLP QAM-B, QAM-C |
| Options | ATSC-M/H ATSC 3.0 CMMB DAB(+), DRM(+), T-DMB DTMB (ADTB-T, DMB-T/H) DVB-C2 DVB-S2X DVB-T2 multi PLP ISDB-S, ISDB-S3 ISDB-T, ISDB-Tmm |
| More options | I/Q sample playout AWGN insertion Multipath echo simulation Remotely controlled playout |
| GOLD option | All options in this table, plus any future option developed for the DTA-2116 |
PC Support
| OS | Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
| PCIe Gen4/5 | Check the DLFE feature page for DTA-2116 issues in PCIe Gen4 or Gen5 slots. |
Software
| StreamXpress | Play TS files and control modulation parameters |
| Atsc3Xpress | ATSC 3.0 signal generator |
| T2Xpress | DVB-T2 signal generator |
| DekTec SDKs | Create your own full-custom application for the DTA-2116 |
Check out the datasheet for a list of all software available for the DTA-2116.
Documentation
Declarations of Conformity
Pricing
| DTA-2116-SP | € | 3.441 | Stock: 25+ |
| All-standard 0-3GHz modulator for PCIe with StreamXpress player software. | |||
| DTA-2116-GOLD | € | 6.675 | Stock: 25+ |
| All-standard VHF/UHF/L-band modulator, GOLD edition. | |||
| Modulation Options |
| The base version of the DTA-2116 supports the modulation standards listed under "Modulation standards" at the top of this page. Please refer to the Modulation Options page for all available options. |
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- Versatile: Supports a wide range of cable, terrestrial, and satellite modulation standards. Also generates arbitrary RF waveforms.
- All-digital: High-quality, low-noise output signal through SDR and digital upconversion.
- Synchronization: Enables SFN and multi-Tx antenna simulations through high-precision syncing to an external clock reference.
- Programmable: All parameters are software-adjustable for automation purposes.
- 80dB: Impressive output level range!
Applications
- R&D: Ideal for developing and testing digital TV equipment, as well as experimenting with new RF modulation schemes.
- Broadcasting: The high signal quality makes the DTA-2116 an excellent choice for actual broadcasting applications.
- Automatic Testing: Automatically cycle through a range of frequencies, levels and modulation parameters, making it useful for factory testing and automated quality control.
- Simulation: Simulate GPS, MIMO, or any other multi-transmit antenna configuration.
Block Diagram
The DTA-2116 is an all-digital modulator that generates a high-quality RF signal. Unlike traditional analog modulators, it performs all signal processing digitally, providing increased flexibility and precision. See the functional block diagram below.
The DTA-2116 receives I/Q packets generated by a software modulation process over the PCIe bus. The I/Q packets are buffered in a DDR memory-based transmit FIFO before further processing. The DTA-2116 then performs channel filtering, resampling, gating, and digital upconversion to generate a digitally upconverted modulated signal, which is then converted into an analog RF signal by a high-performance RF-DAC. The analog RF signal is low-pass filtered and amplified or attenuated with a programmable gain.
The DTA-2116's master clock generator synchronizes the device's oscillator to either an internal 10MHz oscillator or an external 10MHz timing reference for more accurate or synchronized timing. The Sync block enables synchronous starting with the 1pps input signal, facilitating precise synchronization between multiple modulators.
Related Products
 |
DTA-2111B – Multi-Standard Cable/Terrestrial Modulator for PCIe The DTA-2111B is a cost-effective cable/terrestrial modulator designed for OEM applications, whereas the DTA-2116 is a premium modulator for R&D and broadcasting, with satellite support and external synchronization. While more advanced, the DTA-2116 comes at a higher cost. |
 |
DTA-2115B – All-Standard VHF/UHF/L-Band Modulator for PCIe This card has similar specs to the DTA-2116 but with a narrower 0-2GHz frequency range and an 8 channel option not available on the DTA-2116. However, the DTA-2115B has limited synchronization capabilities. and is not recommended for new designs due to containing older components. |
 |
DTU-315 – All-Standard 0-2GHz Modulator for USB-3 The DTU-315 is designed for portability, while the DTA-2116 is intended for rack-mounted use and has slightly better specs. Both modulators use all-digital modulation and upconversion. |

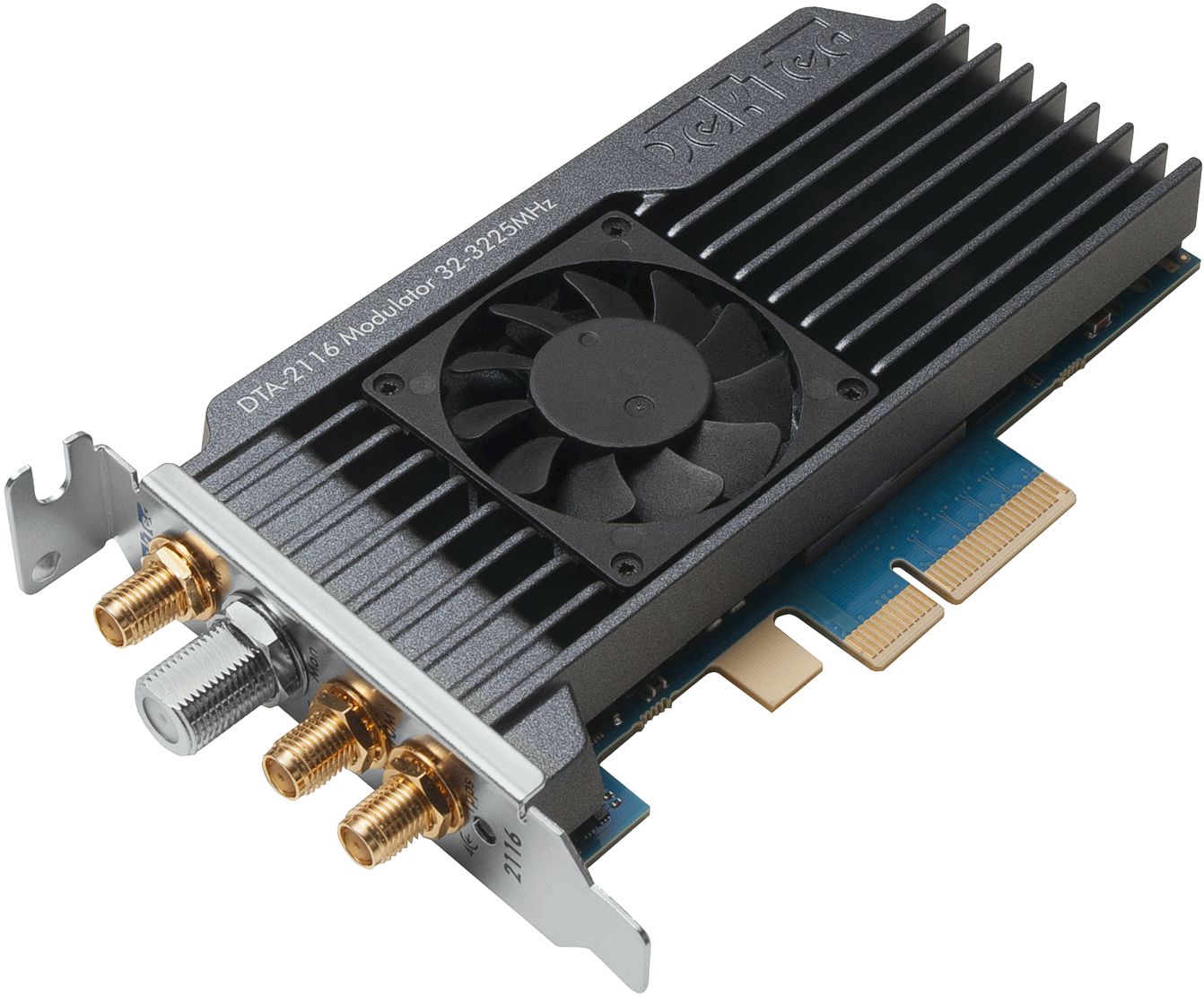

DTA-2116 Bird's Eye View
