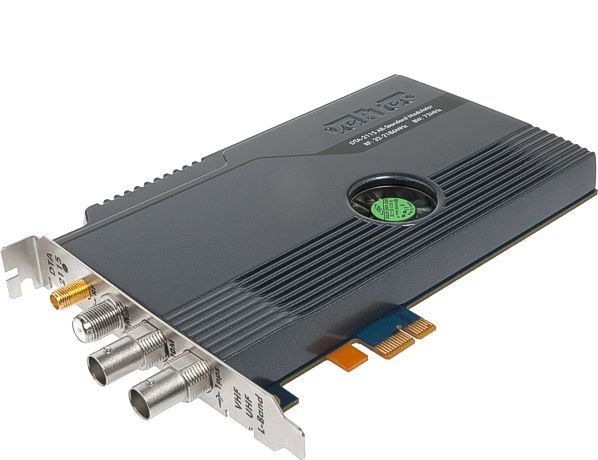

DTA-2115 All-Standard All-Band Modulator for PCIe DekTec's highest-end modulator for satellite, terrestrial and cable standards, prepared for the latest standards such as ATSC 3.0. The DTA-2115 has a programmable output level up to 0dBm and exceptionally low phase noise.
|
Key Characteristics
| RF frequency | VHF, UHF, L band 32 to 2186MHz |
| Mod. bandwidth | Up to 72MHz |
| RF output level | -50 to 0dBm |
| Typical MER | 42dB |
| Phase noise | <-116dBc @ 10kHz |
Inputs and Outputs
| RF out - main | 50-Ω SMA |
| RF out - monitor | 75-Ω F female |
| PCI Express | PCIe3 x1 |
Modulation Standards
| Included with base product | ATSC 8VSB DVB-C DVB-CID DVB-S, DVB-S2 DVB-T, DVB-T2 single PLP QAM-B, QAM-C |
| Options | ATSC-M/H ATSC 3.0 CMMB DAB(+), T-DMB DTMB (ADTB-T, DMB-T/H) DVB-C2 DVB-S2X DVB-T2 multi PLP ISDB-S, ISDB-T, ISDB-Tmm |
| More options | I/Q sample playout AWGN insertion Multipath echo simulation Remotely controlled playout |
| GOLD option | All options in this table, plus all future modulation options developed for the DTA-2115 |
PC Support
| OS | Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
Software
| StreamXpress | Play TS files and control modulation parameters |
| XpressSim | Channel simulator (option for StreamXpress) |
| T2Xpress | DVB-T2 signal generator with full control of all modulation parameters and with integrated channel simulator |
| C2Xpress | DVB-C2 signal generator |
| TmmXpress | ISDB-Tmm signal generator |
| SpRcApi | StreamXpress remote control API for automated playout and modulation |
| DekTec SDKs | Create your own full-custom application with modulated output via the DTA-2115 |
Documentation
Pricing
| DTA-2115-SP | € | 3.955 | |
| All-standard all-band modulator for PCIe with StreamXpress player software. | |||
| DTA-2115-GOLD | € | 7.345 | |
| All-standard all-band modulator for PCIe with all current and future modulation options, channel simulation and StreamXpress including remote control. | |||
| Modulation Options |
| The base version of the DTA-2115 supports the modulation standards listed under "Modulation standards" at the top of this page. Please refer to the Modulation Options page for all available options. |
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- Supports all constellations and modulation modes for each supported standard in VHF, UHF and L-band.
- Excellent signal quality through direct digital synthesis of the RF output signal and an on-board ultra-low phase noise oscillator.
- Can be used for wide-band advanced modulation schemes, such as 16-MHz multi-segment ISDB-Tmm, DVB-S2X and 64-MHz DVB-C2 channel bonding.
Applications
- High-end general-purpose test modulator in your R&D lab for developing and qualifying DTV equipment, or for experimentation with new RF modulation schemes.
- Automatic test equipment (ATE) for tuners, demodulator chips, receivers, TV sets etc.
- Play-back of arbitrary I/Q sample files that are recorded or pre-computed (e.g. with MATLAB), with a bandwidth up to 72-MHz.
Block Diagram
The DTA-2115 reads data from the PCI Express bus and forwards it to a baseband modulator, a channel filter, an optional channel simulator and an upconverter. The digital RF signal is converted to analog with a high-speed D-to-A converter and output on a main and monitor output.
Related Products
 |
DTA-2107 – Multi-Standard Satellite Modulator for PCIe PCI Express modulator with L-band output for satellite standards DVB-S, DVB-S2 and ISDB-S. For DVB-S2X the DTA-2115 or DTU-315 is required. The DTA-2107 is a low-profile card, while the DTA-2115 is standard-profile PCIe card. If you only need satellite modulation and no DVB-S2X, then the DTA-2107 is a cost-effective alternative to the all-standard DTA-2115. |
 |
DTA-2111 – Multi-Standard Cable/Terrestrial Modulator for PCIe PCI Express modulator with VHF/UHF output for cable and terrestrial standards. The DTA-2111 does not support satellite standards, nor will it support ATSC 3.0. The DTA-2111 is a low-profile card, while the DTA-2115 is standard-profile PCIe card. Compared to the DTA-2115, the price point of the DTA-2111 is very attractive, making it an excellent choice for OEM applications. |
 |
DTU-315 – All-Standard 0-2GHz Modulator for USB-3 A portable variant of the DTA-2115: Easy to install and easy to carry to demos and around the lab. Like the DTA-2115, the DTU-315 uses an all-digital modulation and upconversion architecture. However, as the DTU-315 is bus powered, the DTA-2115 has the best specifications for output level (0dBm vs -25dBm) and phase noise. |
