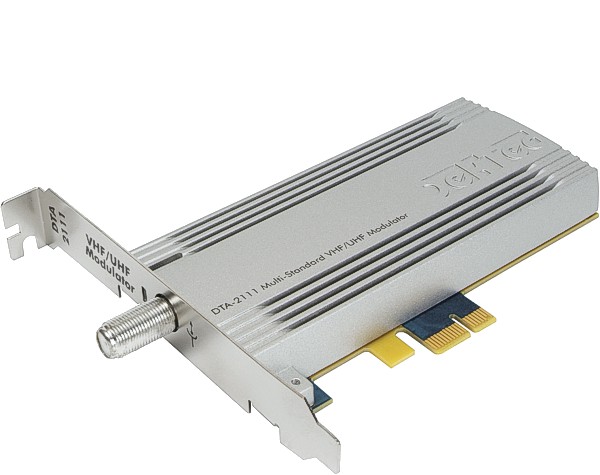

DTA-2111B Multi-Standard Cable/Terrestrial Modulator for PCIe DekTec's PCIe modulator for most QAM-, OFDM- and VSB-based modulation standards. The DTA-2111B has a programmable output level with excellent signal quality due to digital upconversion.
|
Key Characteristics
| RF frequency | VHF, UHF 36 to 1002MHz |
| Mod. bandwidth | Up to 8MHz |
| RF output level | -32 to -9dBm (QAM) -35 to -12dBm (OFDM) |
| Typical MER | >40dB |
| Phase noise | <-95dBc @ 100kHz |
Inputs and Outputs
| RF out | 75-Ω F female |
| PCI Express | PCIe1.1 x1 |
Modulation Standards
| Included with base product | ATSC 1.0 DVB-C DVB-T QAM-B, QAM-C |
| Options | ATSC-M/H CMMB DAB(+), T-DMB DTMB (ADTB-T, DMB-T/H) DVB-C2 DVB-T2 ISDB-T, ISDB-Tmm |
| More options | I/Q sample playout AWGN insertion Multipath echo simulation Remotely controlled playout |
| GOLD option | All options in this table, plus all future modulation options developed for the DTA-2111B |
PC Support
| OS | Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
Software
| StreamXpress | Play TS files and control modulation parameters |
| T2Xpress | DVB-T2 signal generator with full control of all modulation parameters and with integrated channel simulator |
| TmmXpress | ISDB-Tmm signal generator |
| SpRcApi | StreamXpress remote control API for automated playout and modulation |
| DekTec SDKs | Create your own full-custom application with modulated output via the DTA-2111B |
Declarations of Conformity
Pricing
| DTA-2111B-SP | € | 1.112 | Stock: 25+ |
| Multi-standard cable/terrestrial modulator for PCIe with StreamXpress player software. | |||
| DTA-2111B-GOLD | € | 4.275 | Stock: 25+ |
| Multi-standard cable/terrestrial modulator for PCIe with all current and future modulation options, channel simulation and StreamXpress including remote control. | |||
| Modulation Options |
| The base version of the DTA-2111B supports the modulation standards listed under "Modulation standards" at the top of this page. Please refer to the Modulation Options page for all available options. |
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- Supports all constellations and modulation modes for each supported standard, in VHF and UHF, with a fully agile upconverter from 36 to 1002MHz.
- Excellent signal quality through direct digital synthesis of the RF output signal, without need for calibration.
- Digital channel simulator option.
Applications
- Multi-standard general-purpose test modulator in your R&D lab for developing and qualifying DTV equipment, or for experimentation with new RF modulation schemes.
- Automatic test equipment (ATE) for tuners, demodulator chips, receivers, TV sets etc.
- Play-back of arbitrary I/Q sample files that are recorded or pre-computed (e.g. with MATLAB), with a bandwidth up to 8MHz.
Related Products
 |

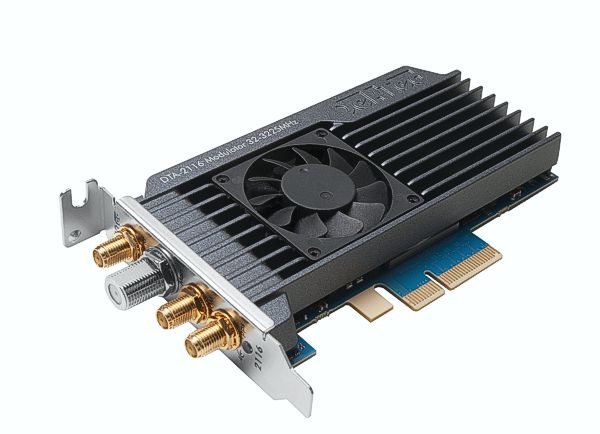

DTA-2115B – All-Standard VHF/UHF/L-Band Modulator for PCIe The DTA-2115B is a high-end modulator with high output level (0dBm) and great phase noise figure. Use the DTA-2115B to generate any QAM signal, or even 8 QAM channels with the new 8-channel firmware. |
 |
