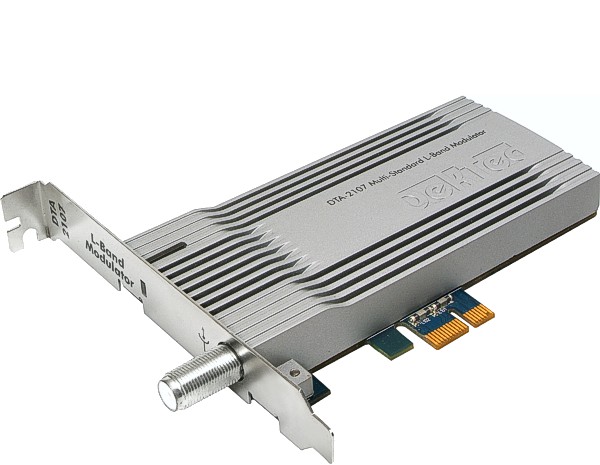

DTA-2107 Multi-Standard Satellite Modulator for PCIe DekTec's satellite modulator for DVB-S, DVB-S2 and ISDB-S, with symbol rates up to 55MBd. The output level is programmable up to -10dBm (DVB-S).
|
Key Characteristics
| RF frequency | 950 to 2150MHz (L band) |
| Symbol rate | 88kBd to 55MBd |
| RF output level | -41.5 to -10dBm (DVB-S) -46.5 to -15dBm (DVB-S2) |
| Roll-off factor | 0.20, 0.25, 0.35 |
| Phase noise | <-95dBc @ 10kHz |
Inputs and Outputs
| RF output | 75-Ω F-type female |
| PCI Express | PCIe x1 |
Modulation Standards
| Base | DVB-S, DVB-S2 |
| Options | ISDB-S, DAB |
| More options | I/Q sample playout AWGN insertion |
PC Support
| OS | Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
Software
| StreamXpress | Play TS files and control modulation parameters |
| XpressSim | Channel simulator (option for StreamXpress) |
| SpRcApi | StreamXpress remote control API for automated playout and modulation |
| DekTec SDKs | Create your own full-custom application with modulated output via the DTA-2107 |
Documentation
Pricing
| DTA-2107-SP | € | 2.839 | Stock: 16 |
| Multi-standard satellite modulator for PCIe with StreamXpress player software. | |||
| Modulation Options |
| The base version of the DTA-2107 supports the modulation standards listed under "Modulation standards" at the top of this page. Please refer to the Modulation Options page for all available options. |
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- Satellite test modulator with integrated agile L-band upconverter, excellent phase noise and programmable output level.
- All parameters and constellations for DAB, DVB-S, DVB-S2 and ISDB-S are supported (except S2X), including 16-APSK and 32-APSK.
- White noise (AWGN) insertion option for testing receiver characteristics. Other special features include user-programmable channel filters and I/Q sample playout.
Applications
- Satellite television RF signal generator for use in your R&D lab, for developing and qualifying satellite-television equipment.
- In combination with MuxXpert, (re-)multiplex in real-time multiple services, add (P)SI tables, and generate a full DVB-S or DVB-S2 signal.
- Create your own application that generates an RF signal that can be directly connected to a satellite receiver. Even actual uplinking to a satellite is feasible and in active use by some of our customers.
