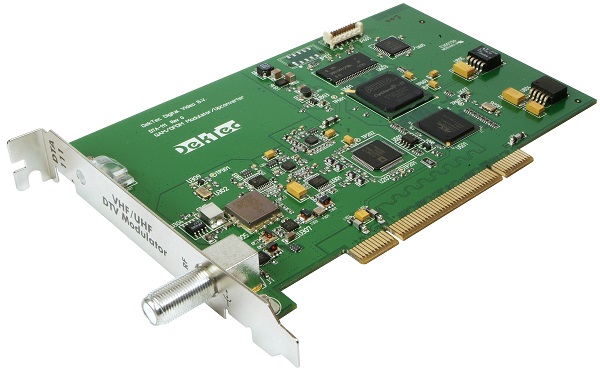

DTA-111 Low-Cost Cable/Terrestrial Modulator for PCI A very low-cost VHF/UHF Modulator for PCI bus.
|
Key Characteristics
| RF frequency | VHF, UHF 47 to 862MHz |
| Mod. bandwidth | 5 to 8MHz |
| RF output level | -15dBm (QAM) -18dBm (OFDM) |
| Phase noise | <-90dBc @ 10kHz |
Inputs and Outputs
| RF out | 75-Ω F-type |
| Slot | PCI |
Modulation Standards
| Included with base product | ATSC 8VSB DVB-C DVB-T QAM-B, QAM-C |
PC Support
| OS | Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
Software
| StreamXpress | Play TS files and control modulation parameters |
| SpRcApi | StreamXpress remote control API for automated playout and modulation |
| DekTec SDKs | Create your own full-custom application with modulated output via the DTA-111 |
Documentation
Pricing
| DTA-111-SP | € | 366 | Stock: 1 |
| Low-cost cable/terrestrial modulator for PCI with StreamXpress player software. | |||
| DTA-111-GOLD | On request | Stock: 1 | |
| Description of product and/or option is missing. | |||
| Modulation Options |
| The base version of the DTA-111 supports the modulation standards listed under "Modulation standards" at the top of this page. Please refer to the Modulation Options page for all available options. |
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- Multi-standard modulator with support for all popular QAM-, OFDM- and VSB-based modulation standards
- All-channel upconverter 47 to 862MHz covering entire VHF and UHF band
- Output can be directly connected to the antenna input of a digital receiver
Applications
- Universal low-cost modulator
- Modulated output for your OEM application

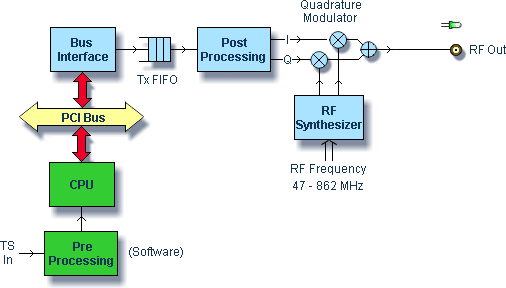

Block Diagram
