SMPTE 2110 SmartNICs DekTec SmartNICs bring high-performance SMPTE 2110 support to standard PCs.
|

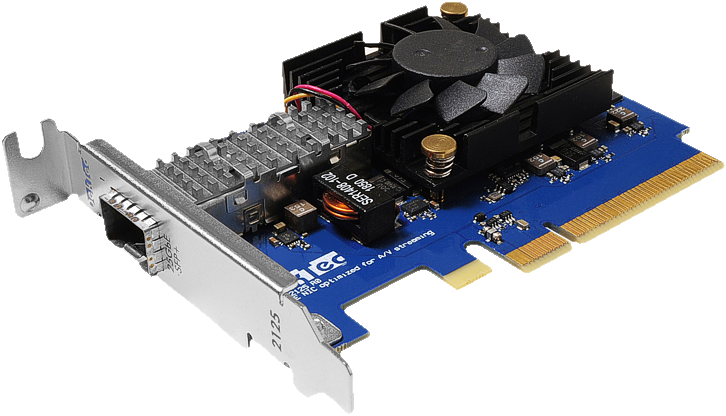

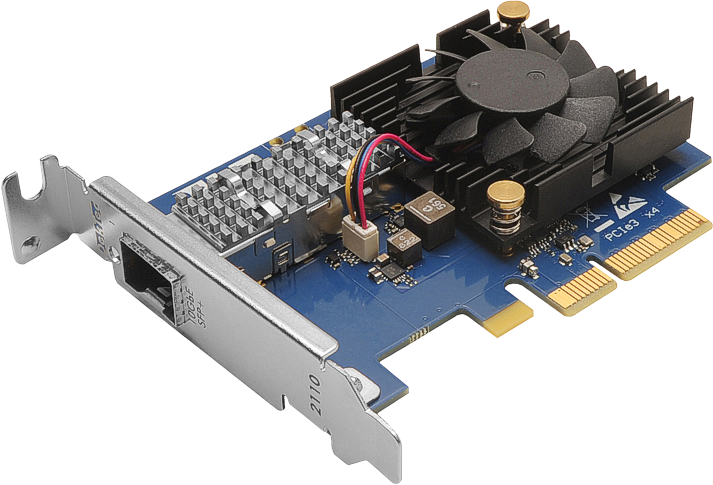

| DTA-2110 | DTA-2125 | |
 |
 |
|
|
List PriceThe suggested retail price for the product. Quantity discounts and OEM arrangements may apply. Please direct OEM queries directly to one of the DekTec offices.
|
€ 806 | € 1.014 |
| Port Speed | 10G / 1G | 25G / 10G |
| #SFP Slots | 1 | 1 |
| Port Type | SFP+ | SFP28 |
| Optimized For | SMPTE 2110 SMPTE 2022-5/6 |
SMPTE 2110 SMPTE 2022-5/6 |
| PTP support | ||
|
Hardware Pipes (Rx)
A Rx Hardware Pipe provides a direct connection from
card to application for receiving SD, HD, 3G, or 4K video.
Each pipe uses a dedicated DMA controller to move video data from Ethernet port to system memory, with minimal latency and without CPU involvement. |
3 | 5 |
|
Hardware Pipes (Tx)
A Tx Hardware Pipe sends SD, HD, 3G, or 4K video
directly from your application to the card.
Each pipe uses a dedicated DMA controller to move video frames to the Ethernet port, with minimal latency and without CPU involvement. |
3 | 5 |
|
Software Pipes
A Software Pipe uses a shared DMA controller to route
data between the card and your application.
It is well-suited for audio and ancillary data, and can also be used for additional video streams at reduced performance, but still better than solutions using standard NICs. The number of software pipes is virtually unlimited, limited only by system resources and Ethernet bandwidth. |
Unlimited | Unlimited |
| Low Profile | ||
| PCI Express Label | PCIe3 x4 | PCIe3 x8 |
| DTA-2110 | DTA-2125 | |
| Ethernet standard | IEEE 802.3ae | IEEE 802.3by |
| SFP+ standard | SFF-8431 | SFF-8431 |
| IPv4 | ||
| IPv6 | ||
| VLAN | IEEE 802.1Q | IEEE 802.1Q |
SMPTE 2110 |
||
| DTA-2110 | DTA-2125 | |
| ST 2110-10 | ||
| ST 2110-20/21 | ||
| ST 2110-30/31 | ||
| ST 2110-40/41 | ||
| ST 2059-1/2 (PTP) | ||
SMPTE 2022 |
||
| DTA-2110 | DTA-2125 | |
| ST 2022-1 | ||
| ST 2022-2 | ||
| ST 2022-5 | ||
| ST 2022-6 | ||
Miscellaneous |
||
| DTA-2110 | DTA-2125 | |
| Windows | 10, 11 | 10, 11 |
| Windows Server | 19, 22 | 19, 22 |
| Linux | ≥4.x, 5.x | ≥4.x, 5.x |
| Power consumption | 10.5W | 15W |
|
LxHxD
Dimensions of the product with the low-profile bracket mounted.
|
||
