RFXpert - RF Monitoring and Analysis Software

RFXpert

RF Monitoring and Analysis Software

Easy-to-understand, real-time analysis software for advanced RF measurements and monitoring of terrestrial and cable digital TV signals.



Key Characteristic

Indicators Pre/post-FEC BER
SER, Error Seconds
Graphs RF-level Histogram vs time
MER Histogram vs time
Constellation Diagram
Eye Diagram
Multipath Echo Profile
Channel Response
Spectrum

Supported Standards and Adapters

ATSC 1.0 DTU-236(A)
DVB-C DTU-236(A), 238
DVB-C2 DTU-238
DVB-T/T2 DTU-238
ISDB-T DTU-238
QAM-A/B/C DTU-236(A)

PC Support

OS Windows 7*, 8*, 10, 11
Win Server 12*, 16, 19, 22

* From June 2023, driver updates for Windows 7, 8, and Server 2012 will no longer be provided. Application installers will include June 2023 drivers as the final versions for these editions.

Processor Core i5 minimum
Core i7 recommended

Or equivalent AMD CPUs

Pricing

DTC-340-RX1.206
RF monitoring and analysis software.

Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.

Features

  • Main window displays overview of current RF status, monitor status and RF level and MER histograms.
  • Master alarm indicators for a quick check of signal integrity.
  • Alarm logging with configurable pass/warn/fail thresholds.

Applications

  • With DTU-236A or DTU-238 RF probes: Comprehensive solution for doing digital television fieldwork on a laptop computer.
  • Analysis and monitoring of RF aspects of terrestrial and cable signals.

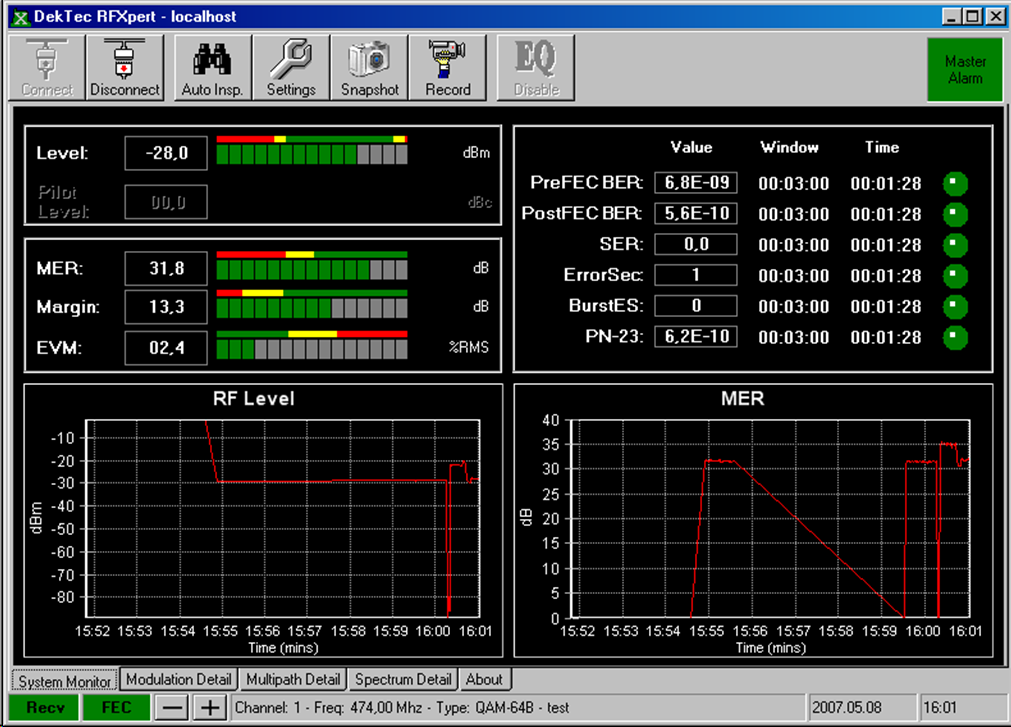

Screenshot

RFXpert screenshot
