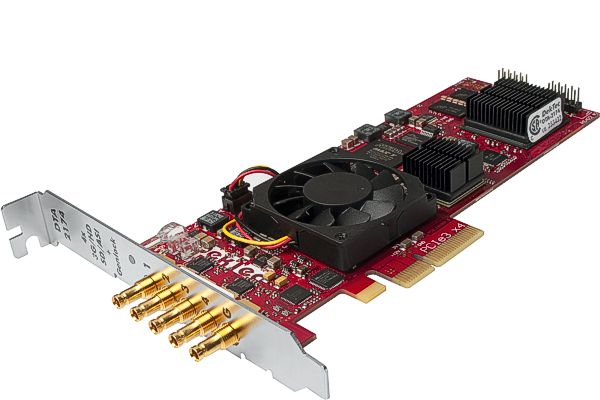

DTA-2174 Quad 3G-SDI/ASI Ports for PCIe The industry's workhorse for interfacing SDI to PCs, with great OEM pricing.
|
Key Characteristics
| Ports |
4x 3G-SDI/ASI in/out 2x deck control 1x genlock in |
| Features |
DekTec Matrix API® 2.0 10-bit full frame support Audio/video/anc extraction Audio/video/anc insertion Hardware scaling: 1/4, 1/16 Multi-stream synchronization |
Hardware
| Connectors | 5x 75-Ω DIN 1.0/2.3 2x RS-422 header on PCB Shipped with 5x converter cable 1.0/2.3 to BNC |
| Return loss | >12dB @ 0 to 3GHz |
| PCI Express | Low-profile PCIe gen3 x4 |
Standards
| Link |
SD-SDI - SMPTE 259M HD-SDI - SMPTE 292M 3G-SDI - SMPTE 424M Level A and level B |
| Video formats |
525i, 625i, 720p, 1080i 1080p, 1080psf, 2160p All common formats supported |
| 4K multi-link | SMPTE 425-5 |
| DVB-ASI | EN50083-9 (coax) 0 to 214 Mbps |
PC Support
| OS | Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
| Airflow | ≥2m/s (400LFM)
DTA-2174-NF only |
Software
| StreamXpress | Playout TS- and SDI files |
| SpRcApi | StreamXpress remote-control API for automated playout |
| StreamXpert | Our industry-standard transport-stream analyzer |
| SdEye | SDI analyzer for detailed inspection of audio, video and ancillary data |
| VF-REC | SDI/TS recorder with looping, scheduling and more |
| DekTec SDKs | Create your own application |
Documentation
Pricing
| DTA-2174-SLP | € | 1.966 | Stock: 25+ |
| Quad 3G-SDI/ASI ports for PCIe with StreamXpert Lite and StreamXpress player software. | |||
| DTA-2174-SXP | € | 3.092 | Stock: 25+ |
| Quad 3G-SDI/ASI ports for PCIe with StreamXpert analyzer and StreamXpress player software. | |||
| DTA-2174-SY-SXP | € | 3.914 | Stock: 25+ |
| Quad 3G-SDI/ASI ports for PCIe with SdEye and StreamXpert analyzer and StreamXpress player software. | |||
| DTA-2174-VR-SY-SXP | € | 4.793 | Stock: 25+ |
| Quad 3G-SDI/ASI ports for PCIe with VF-REC stream recorder, SdEye and StreamXpert analyzer and StreamXpress player software. | |||
| DTA-2174-NF | On request | Stock: 25+ | |
| OEM version of the DTA-2174 without fan. Sufficient airflow is required. | |||
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- Four fully independent ports, configurable from software as input or output, ASI or SDI, in SD/HD/3G or 4K multi-link (4x 3G-SDI).
- External synchronization of SDI outputs via port 1 (digital genlock), or with analogue genlock port accepting bi- and tri-level sync.
- Create your own applications for processing SDI (up to 3G) and/or ASI signals with the easy-to-use DekTec Matrix API® 2.0.
Applications
-
General purpose SDI and ASI I/O, e.g. for:
- Video encoding and transcoding;
- Live production mixers, effect generators;
- Teletext-, subtitle inserters.
- ASI/SDI stream station for analysis, monitoring and generation of all SDI rates up to 3G-SDI.
- Recording and playing back 4K content with standard PC hardware, using VF-REC with JPEG-2000 compression option.
Block Diagram
The DTA-2174 features four independent transmit/receive channels, each consisting of a cable equalizer, ASI/SDI receiver, ASI/SDI transmitter, matrix logic, a high-performance DMA controller and a PCIe interface.
DekTec Matrix API® 2.0
The Matrix-API framework decodes incoming SDI data into pixels (in a programmable format), audio samples and ANC data structures. When a new frame has been received, the framework calls a user-supplied "frame-processor callback" for processing of the data. The user callback can create output video, audio and ANC data. which is encoded by the framework into SDI frames.
Synchronization of multiple input streams is straightforward: The video/audio/anc data of all SDI frames supplied to the callback function have the same arrival time by definition. Past frames can be accessed by an integer frame index. The framework ensures that if frames from different input ports have the same frame index, they have entered the system at the same time instance.
Related Products
DekTec Matrix API® 2.0 supports the DTA-2174 and all products listed below. Applications designed for one of these cards will run virtually unaltered on any of the other cards.
 |
DTA-2174B – Quad 3G-SDI/ASI Ports (1x12G) for PCIe The successor of the DTA-2174: smaller, 12G-SDI support, no fans, more robust and an attractive price. |
 |
DTA-2172 – Dual 3G-SDI/ASI Ports for PCIe Two-port variation of the DTA-2174. |
 |
DTA-2175 – HD-SDI/ASI in+out with relay for PCIe Single HD-SDI/ASI input+output card with failover relay for creating redundant configurations. |
 |
DTA-2179 – Twelve 3G-SDI/ASI Ports for PCIe
High-density variation of the DTA-2174, with 12 independent 3G-SDI/ASI ports
and a genlock input. |
 |
DTA-2195 – 12G-SDI Input and Output with HDMI 2.0 for PCIe Uncompressed 4K I/O, like the DTA-2174, but with single-link 12G-SDI input and 12G-SDI + HDMI 2.0 output. |

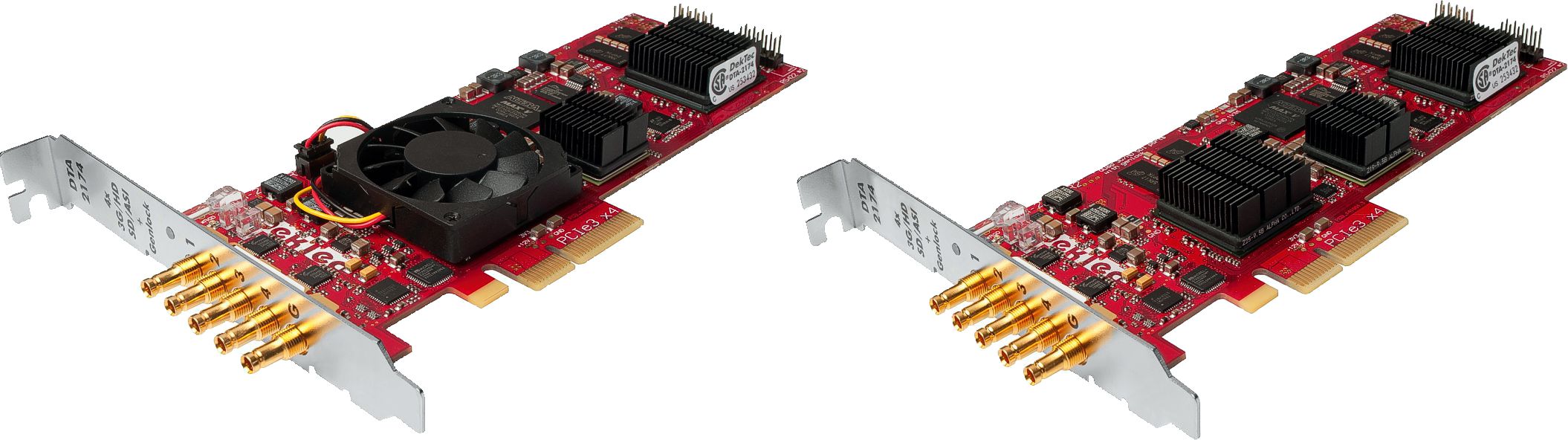

DTA-2174 Bird's Eye View
The DTA-2174 is available in a standard configuration with one cooling fan, and in a special OEM version without fan (DTA-2174-NF), which requires sufficient airflow in the PC.
