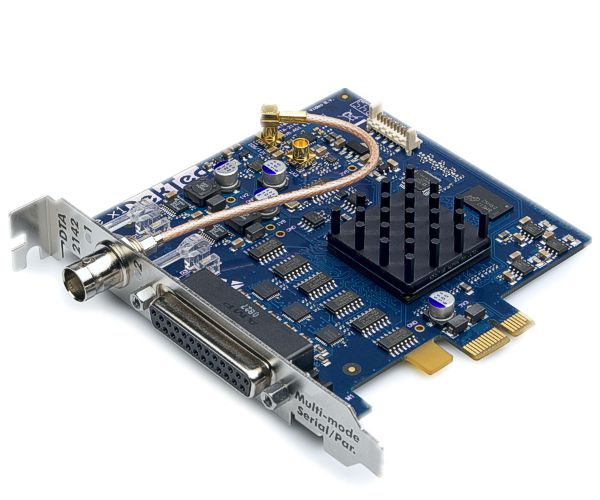

DTA-2142 Serial and Parallel Port for PCIe Serial and parallel interfaces for ASI and SD-SDI, supporting multiple electrical standards including M-LVDS and LVTTL. Clock rates up to 108MHz are supported.
|
Key Characteristics
| ASI | DVB-ASI (coax) EN50083-9 0 to 214 Mbps Resolution <1 bps |
| SDI | SMPTE 259M 270 Mbps 8 or 10 bit format |
| Buffer | 32MB/channel |
| I/O standard | M-LVDS @ 108MHz LVTTL @ 27MHz |
| External reference clock | >1V top-top |
| Modes | DVB-SPI serial fixed-clock TS BT.656 |
| Input return loss | >15dB |
Inputs and Outputs
| ASI/SDI | 75-Ω BNC 25-pin sub-D |
| PCI Express | PCIe x1 |
PC Support
| OS | Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
Software
| StreamXpress | Play TS files and control modulation parameters |
| SpRcApi | StreamXpress remote control API for automated playout |
| StreamXpert | Analyze your received transport streams using our analyzer software |
| SdEye | Advanced SDI signal monitoring software |
| VF-REC | Advanced Transport-Stream/SDI Recorder |
| DekTec SDKs | Create your own full-custom application with the DTA-2142 |
Documentation
Pricing
| DTA-2142-SLP | € | 1.726 | Stock: 6 |
| Serial and parallel port for PCIe with StreamXpert Lite and StreamXpress player software. | |||
| DTA-2142-SXP | € | 2.897 | Stock: 6 |
| Serial and parallel port for PCIe with StreamXpert analyzer and StreamXpress player software. | |||
| DTA-2142-SY-SXP | € | 3.752 | Stock: 6 |
| Serial and parallel port for PCIe with SdEye and StreamXpert analyzer and StreamXpress player software. | |||
| DTA-2142-VR-SY-SXP | € | 4.666 | Stock: 6 |
| Serial and parallel port for PCIe with VF-REC stream recorder, SdEye and StreamXpert analyzer and StreamXpress player software. | |||
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- A universal bi-directional parallel port for RX and TX of 8-bit data with valid and sync signals at clock rates up to 108MHz.
- The parallel port supports several modes, including DVB-SPI with boosted clock range, transport stream with fixed clock and valid, serial with explicit clock and BT.656 for uncompressed SD video.
- Support for an external clock input that can be used as master clock for the serial and/or parallel port.
- The BCN connector on the bracket can be used as serial port (by default) or as external clock input by reconnecting a coax cable to the external clock input MCX connector.
- Selectable I/O standard, either M-LVDS or LVTTL with on-board short-circuit detection on the parallel port.
Applications
- A general purpose lab card for generating and capturing of (un)compressed digital video and other 8b or 10b signals.
- For use in a universal stream station.
- In combination with MuxXpert you can real-time multiplex streams.
