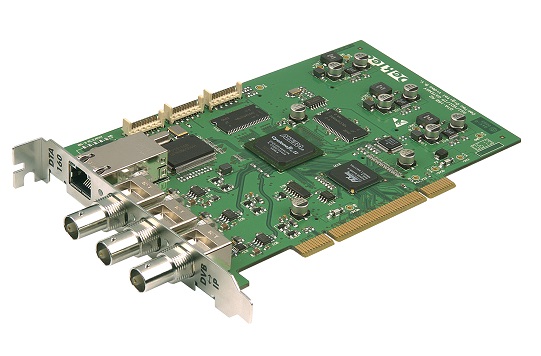

DTA-160 GigE and 3x ASI Input/Output for PCI DekTec's Gigabit Ethernet adapter with three ASI/SDI ports, allowing zero-jitter transmission and reception of Transport Streams over IP networks; the additional three ASI ports allow easy conversion between the two interface types.
|
Key Characteristics
| IP | IEEE 802.3ab / SMPTE 2022 10/100/1000Mbps auto-sense Unlimited TS, max 600Mbps UDP, RTP (opt FEC) Unicast and Multicast |
| ASI | DVB-ASI (coax) EN50083-9 0 to 214 Mbps Resolution <1 bps |
| SDI | SMPTE 259M 270 Mbps 8 or 10 bit format |
| Buffer | 32MB/channel |
| Input return loss | >15dB |
Inputs and Outputs
| Ethernet | RJ-45 |
| 3x ASI/SDI | 75-Ω BNC |
| Slot | PCI |
PC Support
| OS | Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
Software
| StreamXpress | Play TS files and control modulation parameters |
| SpRcApi | StreamXpress remote control API for automated playout |
| StreamXpert | Analyze your received transport streams using our analyzer software |
| SdEye | Advanced SDI signal monitoring software |
| VF-REC | Advanced Transport-Stream/SDI Recorder |
| DekTec SDKs | Create your own full-custom application with via the DTA-160 |
Documentation
Application Notes
Pricing
| DTA-160-SLP | € | 499 | Stock: 10 |
| GigE and 3x ASI input/output for PCI with StreamXpert Lite and StreamXpress player software. | |||
| DTA-160-SXP | € | 1.670 | Stock: 10 |
| GigE and 3x ASI input/output for PCI with StreamXpert analyzer and StreamXpress player software. | |||
| DTA-160-J-SXP | € | 2.059 | Stock: 10 |
| GigE and 3x ASI input/output for PCI with DtJitter and StreamXpert analyzer and StreamXpress player software. | |||
| DTA-160-VR-J-SXP | € | 2.973 | Stock: 10 |
| GigE and 3x ASI input/output for PCI with VF-REC stream recorder, DtJitter and StreamXpert analyzer and StreamXpress player software. | |||
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- Simultaneous zero-jitter transmission and reception of multiple Transport Streams over IP networks.
- With time-stamping of incoming IP packets for IP jitter analysis and two-dimensional FEC generation for outgoing packets, with programmable D and L, a perfect solution for network optimization.
- Three independent software controllable bi-directional BNC ports, operable in ASI or SDI mode, with individual status LEDs.
Applications
- IP jitter analysis using DtJitter.
- Using the StreamXpert and DtJitter software multiple TS over IP streams can be individually monitored and analyzed.
- For a 24/7 monitoring solution unlimited (limited to the available bandwidth) IP ports can be used by the Xpect software.
- In combination with MuxXpert you can real-time multiplex streams.

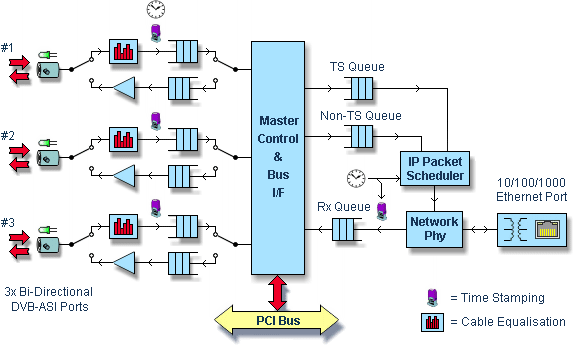

Block Diagram
