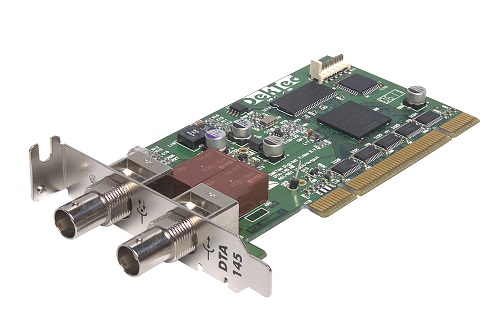

DTA-145 ASI/SD-SDI Input and Output for PCI DekTec's bi-directional dual ports ASI/SDI adapter, with genlock and watchdog-controlled input-to-output relay for redundant configuration.
|
Key Characteristics
| ASI | DVB-ASI (coax) EN50083-9 0 to 214 Mbps Resolution <1 bps |
| SDI | SMPTE 259M 270 Mbps 8 or 10 bit format |
| Buffer | 16MB/channel |
| Input return loss | >17dB |
Inputs and Outputs
| 2x ASI/SDI | 75-Ω BNC |
| Slot | PCI |
PC Support
| OS | Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
Software
| StreamXpress | Play TS files and control modulation parameters |
| SpRcApi | StreamXpress remote control API for automated playout |
| StreamXpert | Analyze your received transport streams using our analyzer software |
| SdEye | Advanced SDI signal monitoring software |
| VF-REC | Advanced Transport-Stream/SDI Recorder |
| DekTec SDKs | Create your own full-custom application with the DTA-145 |
Documentation
Pricing
| DTA-145-SLP | € | 390 | Stock: 4 |
| ASI/SD-SDI input and output for PCI with StreamXpert Lite and StreamXpress player software. | |||
| DTA-145-SXP | € | 1.516 | Stock: 4 |
| ASI/SD-SDI input and output for PCI with StreamXpert analyzer and StreamXpress player software. | |||
| DTA-145-SY-SXP | € | 2.338 | Stock: 4 |
| ASI/SD-SDI input and output for PCI with SdEye and StreamXpert analyzer and StreamXpress player software. | |||
| DTA-145-VR-SY-SXP | € | 3.217 | Stock: 4 |
| ASI/SD-SDI input and output for PCI with VF-REC stream recorder, SdEye and StreamXpert analyzer and StreamXpress player software. | |||
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- Two independent software controllable BNC ports (one bi-directional, one output-only), operable in ASI or SDI mode, with individual status LEDs.
- Cable equalization and inverted ASI support, as well as (8- and) 10-bit SDI full-frame (270Mbps), with support for lossless SDI huffman encoding/decoding for reduction of bus bandwidth and file size.
- Hardware counters for bitrate measurement and statistics and flexible receive mode with time-stamping, packet sequence counting and false-sync pass-through.
- Watchdog-controlled input-to-output bypass relay; in case hardware or software fails, the output is physically connected to the input.
- Transmit on timestamp mode for generation of ASI test streams with packet jitter.
- Bitrate lock mode for locking the output bitrate to the input bitrate.
- Raw ASI mode for transmitting or receiving all ASI symbols, including K28.5 stuffing characters.
Applications
- Simple fail-over configuration for High-Availability stream generation.
- Using the StreamXpert and SdEye software all ports can be individually monitored and analyzed.
- In combination with MuxXpert you can real-time multiplex streams from input to output.

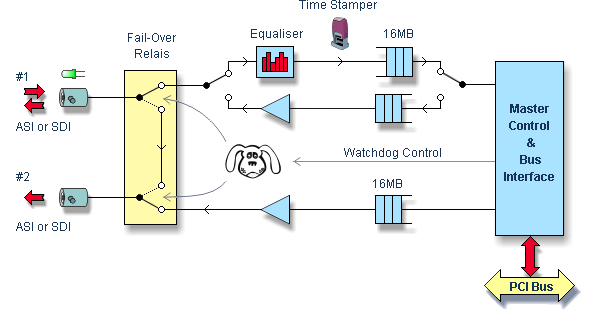

Block Diagram
