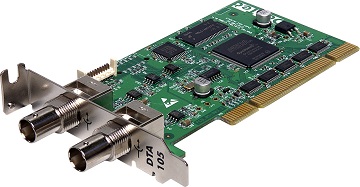

DTA-105 Dual DVB-ASI Output for PCI DekTec's two-ports ASI output adapter, with slave-capabilities to output a single doubly-buffered output to two ports.
|
Key Characteristics
| ASI | DVB-ASI (coax) EN50083-9 0 to 214 Mbps Resolution <1 bps |
| Buffer | 16MB/channel |
Inputs and Outputs
| 2x ASI | 75-Ω BNC |
| Slot | PCI |
PC Support
| OS | Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
Software
| StreamXpress | Play TS files and control modulation parameters |
| SpRcApi | StreamXpress remote control API for automated playout |
| DekTec SDKs | Create your own full-custom application |
Documentation
Pricing
| DTA-105-SP | € | 310 | Stock: 4 |
| Dual DVB-ASI output for PCI with StreamXpress player software. | |||
| DTA-105-RC-SP | € | 684 | Stock: 4 |
| Dual DVB-ASI output for PCI with Remote control option for StreamXpress and StreamXpress player software. | |||
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- Two independent software controllable BNC output ports, operable in ASI mode, with individual status LEDs.
- Optional mode to slave the second output to the first, creating a single doubly-buffered output.
- Cable equalization and inverted ASI support.
Applications
- General-purpose output adapter for PC-based applications that generate an DVB-ASI transport stream.
- Using StreamXpress, this is an MPEG-2 transport stream test-generator.
Block Diagram
