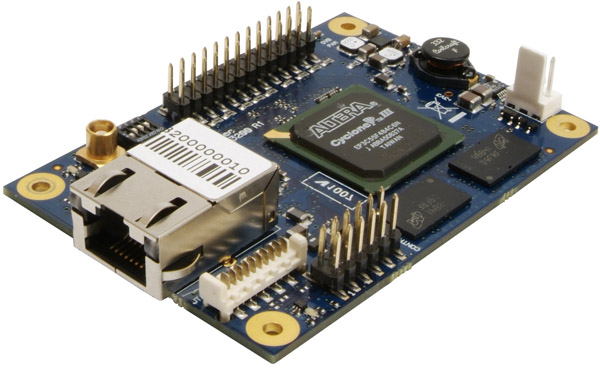

DTM-3200 OEM Module for Conversion Between IP and ASI The DTM-3200 converts IP to ASI, or ASI to IP. Integrate this compact module to extend the range of I/O standards supported by your product. Technical highlights include advanced IP-jitter filtering, ultra-low latency and zero-jitter IP transmission.
|
Key Characteristics
| Function |
ASI to IP conversion, or IP to ASI conversion Next to the ASI port, an 8-bit parallel port on a box header is available |
| Control | Serial via RS-232, RS-422, RS-485, I2C or USB* * USB requires DTM-3301 |
| IP protocol | IPv4, UDP or RTP |
| Encapsulation | SMPTE 2022-2 |
| IP FEC | SMPTE 2022-1 |
| Bitrate | 0.01 to 214Mbps |
| ASI to IP latency | 1ms max |
| IP to ASI latency | 1 to 500ms (programmable) Jitter tolerance buffer |
Inputs and Outputs
| Ethernet | RJ-45 1GbE |
| ASI in/out | 75-Ω MCX |
| Parallel in/out | 8-bit M-LVDS Prototcol is similar to DVB-SPI, but with fixed 27-MHz clock |
Documentation
Latest Firmware
Control Software
Pricing
| DTM-3200 | € | 495 | No stock |
| Standalone OEM module for conversion between IP and ASI. | |||
| DTM-3200-RA | € | 460 | No stock |
| DTM-3200 with right-angle connectors. | |||
| DTM-3200-DEVKIT | € | 536 | No stock |
| Development kit, consisting of DTM-3200, power supply, USB interface converter, USB cable and MCX-to-BNC cable assembly for ASI port. | |||
| OEM | On request | ||
| For OEM development, we have special volume pricing. Please contact us to discuss your requirement. | |||
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- Standalone module for converting a transport stream from IP to ASI, or from ASI to IP, with full support for SMPTE 2022 TS-over-IP.
- By processing packets entirely in hardware, the input-to-output latency is kept low (<1ms), and no unnecessary jitter is introduced.
- An advanced IP jitter-filtering algorithm is used for providing large jitter tolerance. Even under adverse network conditions transport streams are reconstructed properly.
Applications
- Building block for gateways - or other equipment - that tunnel transport streams over LAN, WAN or the Internet.
- Use the DTM-3200 as an "I/O extender":
- Add TS-over-IP inputs or outputs to your product that only has ASI ports.
- Add ASI inputs or outputs to your product that only has network ports.
Control Software
The DTM-3200 can be controlled through one of the available serial interfaces. Settings applied are stored in nonvolatile memory on the unit, and automatically reloaded after a power cycle. It is not possible to configure the device via the Ethernet interface.
DekTec provides the following software for controlling the DTM-3200:
- Dtm3200Util - Windows tool to view status, to control settings and to upload firmware. This tool is convenient for initial configuration and for experimentation with the DTM-3200.
- DtmHandler - A set of C functions, also useable from C++, implementing a protocol handler. With these functions, controlling the DTM-3200 from your application becomes really easy. Full source code is available, so that you can use the protocol handler functions with any compiler.
- DtmCmd - Windows/Linux command line tool for controlling the DTM-3200. DtmCmd is an example of using the DtmHandler functions.
