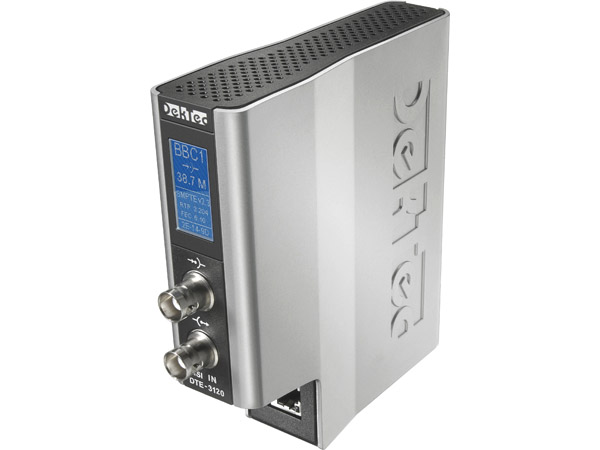

DTE-3120 Standalone ASI To IP Converter DekTec's standalone power-over-ethernet enabled ASI to IP Converter, allowing zero-jitter transmission of Transport Streams to IP networks.
|
Key Characteristics
| Function | ASI to IP conversion |
| Control | Webinterface SNMP DTAPI |
| IP encapsulation | IPv4 UDP RTP (SMPTE 2022-2) |
| FEC | SMPTE 2022-1 |
| ASI to IP latency | 1ms max |
| ASI specifications | DVB-ASI (coax) EN50083-9 0 to 214 Mbps Resolution <1 bps |
| Input return loss | >15dB |
| Companion device | DTE-3100 - IP to ASI |
Inputs and Outputs
| Ethernet connector | RJ-45 |
| 1x ASI in | 75-Ω BNC |
| 1x ASI out | 75-Ω BNC (loop output) |
PC Support
| OS |
Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.18, 3.x, 4.x, 5.x |
| Processor | Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
Documentation
Latest Firmware
Software
| StreamXpert | Analyze your received transport streams using our analyzer software |
Pricing
| DTE-3120 | € | 1.326 | Stock: 25+ |
| Standalone ASI to IP converter. | |||
| DTE-3120-SX | € | 2.532 | Stock: 25+ |
| Standalone ASI to IP converter with StreamXpert analyzer software. | |||
| DTE-RCK1 | € | 192 | |
| 19-inch rack for installing DTE-31XX units. | |||
| DTE-STAND | € | 46 | |
| Table stand for one DTE-31XX unit. | |||
Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.
Features
- Standalone module can either be used as compact autonomous ASI to IP gateway, or as remote I/O device for PC-based applications
- Time stamping for monitoring applications
- Power-over-Ethernet support: No separate power feed required
- Active loop-through with fail-over relay for input-to-output connection in case of power failure
- LCD status display shows device identifier, bitrate, IP/MAC address and status
Applications
- Autonomous DVB-ASI to IP gateway
- With DTE-3100: Tunnelling of ASI signals over LAN, WAN or the Internet
- Remote DVB-ASI input adapter for server-based analyzers, monitoring applications, multiplexers and similar systems
